Laser Cutter

The all-round talent among the machines at Happylab! Our laser cutters can cut and engrave a wide variety of materials such as wood, cardboard, plexiglass, leather, fabric and rubber stamps with a focused infrared laser beam. In addition, there are some materials that can only be engraved - such as Glass and metal.

Training is required to use the laser cutters:

Next training (Trotec): n/a
Individual training (Trotec)→ Book appointment
Self-study & online test (Trotec)→ Online test
Next training (Thunderlaser): 16.12.2020 20:00→ Register
Individual training (Thunderlaser)→ Book appointment

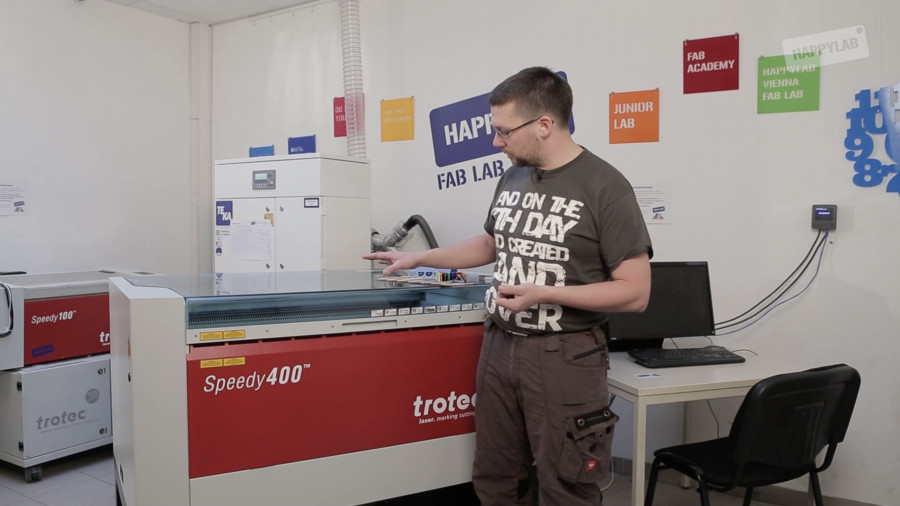

Trotec Speedy 400

  • 1000 x 610 mm working area
  • Workpiece height up to 305 mm
  • 80 watt laser power
  • Laser type: CO2
  • including rotary engraving device
  • Price: 0 € / minute (included in membership)

Trotec Speedy 100

  • 610 x 305 mm working area
  • Workpiece height up to 170 mm
  • 60 watt laser power
  • Laser type: CO2
  • Price: 0 € per minute (included in membership)

Thunderlaser nova63

  • Large format laser for cutting thicker materials
  • 1600 x 1000 mm working area
  • Workpiece height up to 200 mm
  • 100 watt laser power
  • Laser type: CO2
  • Price: € 1 per minute (pure laser time)

Tutorials

What's a laser cutter?

Laser cutter training

Rotary engraving on glass

Engraving stamps

A company logo

3D Printer & 3D Scanner

Our 3D printers use digital templates to create three-dimensional objects out of plastic. Two different processes are available at Happylab Vienna:  3D printers using the fused deposition modeling process (FDM) heat the material and apply it layer by layer. In the stereolithography process (SLA), a light-curing plastic (synthetic resin) is cured in thin layers by a laser beam.

Training is required to use the 3D printers:

Next training (FDM): n/a
Individual training (FDM)→ Book appointment
Next training (SLA): n/a
Individual training (SLA)→ Book appointment

PRUSA i3 MK3s (2 Machines)

  • Fused deposition modeling (FDM)
  • 210 x 250 x 200 mm printing area
  • Material: PLA filament in various colors
  • Layer thickness: 0.05 to 0.3 mm
  • Recommended minimum wall thickness: 1.0 mm
  • Price: 1,20 € per hour, including filament

dimension elite

  • Fused deposition modeling (FDM)
  • 203 x 203 x 305 mm printing area
  • Material: ABS filament (white), water-soluble support material
  • Layer thickness: 0.1778 mm or 0.254 mm
  • Recommended minimum wall thickness: 0.7 mm
  • Price: 0,45 € per cm3 (min. 5 € / print)

dimension SST

  • Fused deposition modeling (FDM)
  • 203 x 203 x 305 mm printing area
  • Material: ABS filament (white), water-soluble support material
  • Layer thickness: 0.254 mm or 0.33 mm
  • Recommended minimum wall thickness: 1.0 mm
  • Price: 0,45 € per cm3 (min. 5 € / print)

Formlabs form 2

  • Stereolithography (SLA)
  • 145 x 145 x 175 mm printing area
  • Material: synthetic resin in clear, grey and flexible
  • Layer thickness: 0.025 to 0.1 mm
  • Laser beam diameter: 0.140 mm
  • Recommended minimum wall thickness: 0.4 to 0.6 mm
  • Price: from € 0,70 per ml (min. € 5 / print)

Formlabs form Wash

  • Wash station for SLA prints
  • Automatic workflow
  • Consistent cleaning with isopropyl alcohol (IPA)
  • Price: 0 € per minute (included in membership)

Formlabs form CUre

  • Cure station for SLA prints
  • Temperatures up to 80 ° C
  • Consistent exposure
  • Price: 0 € per minute (included in membership)

Matter and form

  • 3D scanner for scans up to 18 cm in diameter, 25 cm in height, 3 kg
  • including software MFStudio
  • Price: 0 € per minute (included in membership)

ASUS XTION PRO LIVE

  • including software ReconstructMe for 3D scanning
  • Price: 0 € per minute (included in membership)

Tutorials

What's a 3D printer?

3D printer training

Online course: Software behind 3D printing (part 1)

Online course: Software behind 3D printing (part 2)

A company logo

CNC Mill

The CNC milling machine is the right machine for all "tough cases" and large workpieces. Our 3-axis portal milling machine can process objects made of wood, plastic, metal and other materials. Circuit boards can also be drilled, milled and cut out automatically. A selection of milling cutters is available in our shop!

Training is required to use the CNC milling machine:

Next training: n/a
Individual training → Book appointment

BZT PFK 1607 PX

  • 3-axis portal milling machine
  • 1680 x 750 x 250 mm travel
  • 2.5D and 3D milling possible
  • Milling cutters are available in our shop.
  • Price: 0 € / minute (included in membership)

Tutorials

What's a CNC mill?

CNC mill training

3D milling

Metal milling

Software: Vectric Cut2D

Software: Vectric Cut3D

A company logo

Cutting plotter

With the cutting plotter, motifs and lettering can be cut out of film. A small knife traces the contours of the graphic without damaging the backing paper. The machine is often used for wall tattoos, adhesive lettering or for printing on textiles. A selection of adhesive and flex foils is available in our shop!

Training is required to use the cutting plotter:

Next training: n/a
Individual training → Book appointment
Self-study & online test→ Online test

GCC Bengal BN-60

  • Cutting width up to 600 mm
  • Maximum material thickness: 0.8 mm
  • Maximum cutting pressure: 400 g
  • Price: 0 € / minute (included in membership)

ECO Flash MAG 3838

  • Transfer press for printing textiles using heat transfer
  • 38 x 38 cm work surface
  • Maximum temperature: 225 °C
  • Maximum working pressure: 250g / cm2
  • Price: 0 € / minute (included in membership)

Tutorials

What's a cutting plotter?

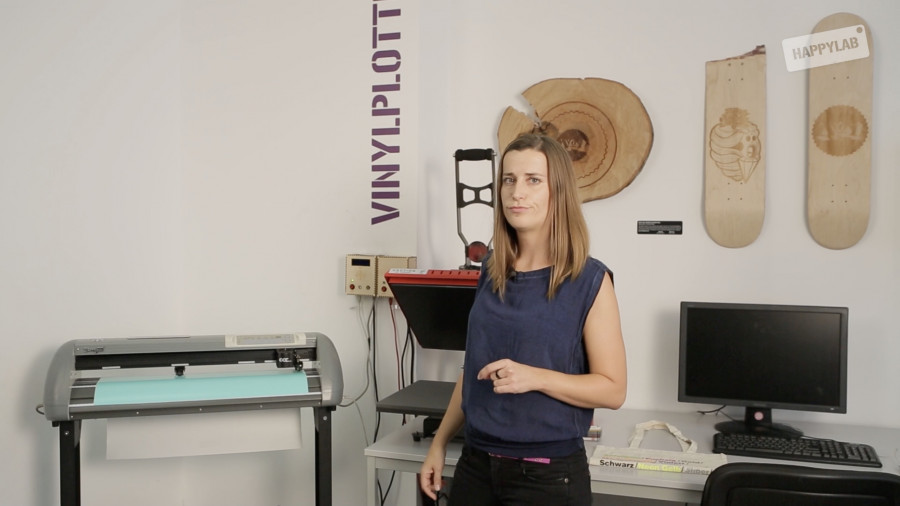

Cutting plotter training

Imprinting textiles

Stickers made of adhesive foil

A company logo

Textile lab

Our textile lab is equipped with a digital embroidery machine, sewing machine and overlock sewing machine. This allows you to process textiles professionally and embroider them automatically. Needles, fleece and threads in different colours are available in our shop!

Training is required to use the Textile Lab:

Next training (embroidery machine): 09.12.2020 20:00→ Register
Individual training (embroidery machine) → Book appointment
Next training (sewing machine): 10.12.2020 10:00→ Register
Individual training (sewing machine)→ Book appointment
Self-study & online test→ Online-Test

Brother Innov-is V3LE

  • Digital embroidery machine with LCD touch screen
  • Large embroidery area up to 300 x 200 mm
  • 27 thread colors available
  • Embroidery speed up to 1050 stitches per minute
  • Automatic thread cutter
  • Automatic needle threader
  • including PE Design Plus 2 software
  • Price: € 0,20 per minute (pure embroidery time), including thread, needle, fleece

Bernina 325

  • Sewing machine with LCD display
  • Sewing speed up to 900 stitches per minute
  • 9 needle positions
  • Creative stitch selection, e.g. Letters, numbers, ...
  • Price: € 0,20 per minute (pure sewing time), including thread & needle

Babylock Victory

  • 4-thread overlock sewing machine
  • Easy threading through the jet-air system
  • Differential feed for elastic fabrics and ruffles
  • Cutting and sewing the fabric in one operation
  • Price: € 0,20 per minute (pure sewing time), including thread & needle

The Textile Lab was designed and built as part of the FEM*mad project. FEM * mad (FFG No. 873000) is part of the "Talents" program of the Austrian Research Promotion Agency (FFG) and is funded by the Federal Ministry for Climate Protection, Environment, Energy, Mobility, Innovation and Technology.

A company logo

Electronics & circuit board manufacturing

Our electronics workstation is equipped with the necessary equipment to easily manufacture electronic circuits. At Happylab, circuit boards can also be exposed, developed, etched and then assembled using soldering stations or reflow ovens.

No training is required to use the electronics workstation.

Laboratory Power supply Peaktech 6150

Laboratory Power supply Voltcraft SPS 1525 PFC

Oscilloscope ISO-TECH IDS 8204

Digital soldering station ersa i-ConPICO

Hot air soldering station ZD-939L

Digital microscope

UV exposure unit

Reflow-Oven Infrared IC Heater PUHUI T-962

Printer for exposure masks

Etch bath sodium persulfate

PCB shear

Hand press for hollow rivets

Digital multimeter UNI-T UT139C

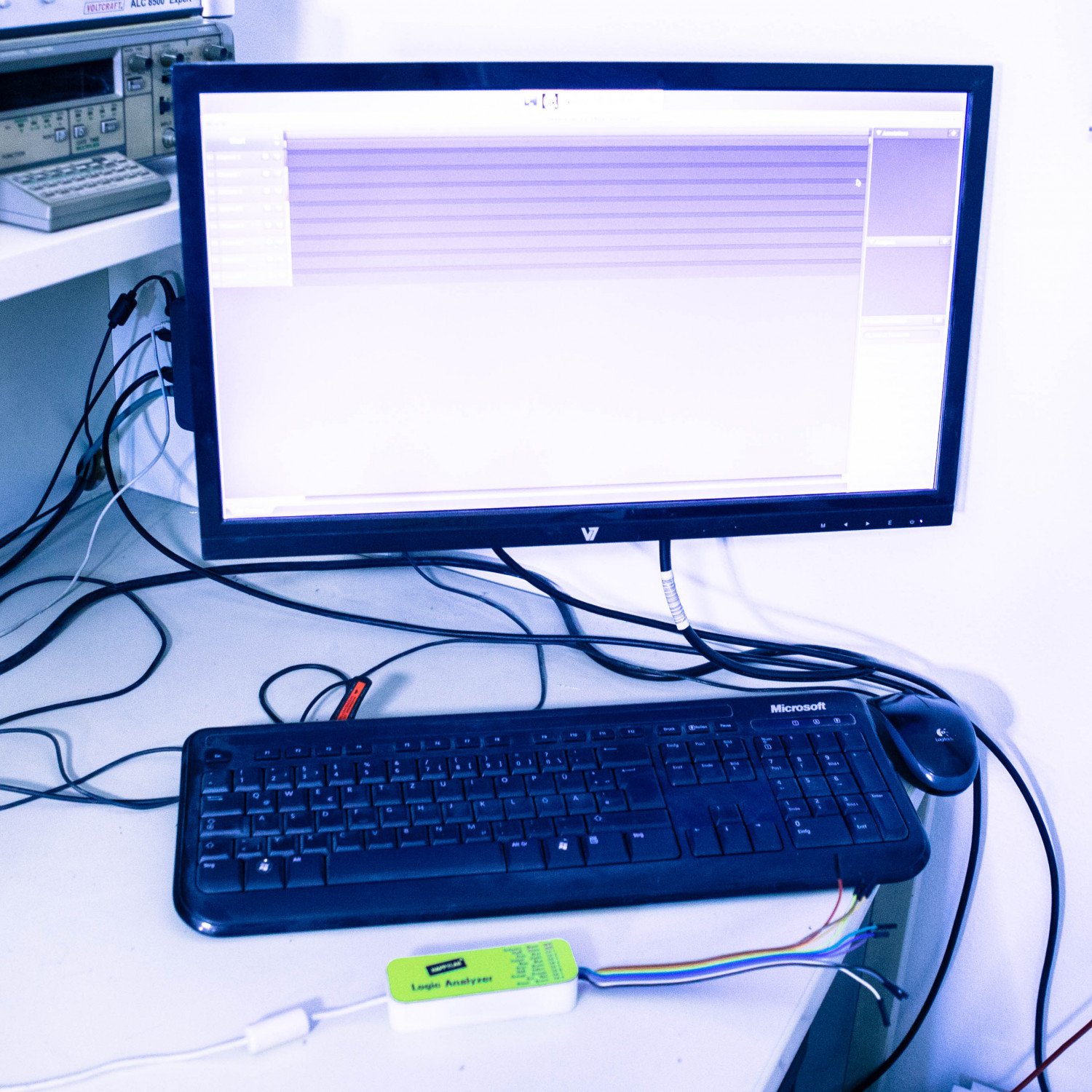

Logic Analyzer Saleae

Magnifying lamp

Desoldering pump & tweezers

Pliers

Screw drivers

A company logo

Workshop

In addition to all the digital production machines, Happylab also has a workshop for small wood and metal works. Our workshop is equipped with workbenches and common hand tools - from screwdrivers and drills to various saws and sanding devices.

No training is required to use the workshop.

Scroll saw

Standing drill

Disc sander

Precision drill / grinder

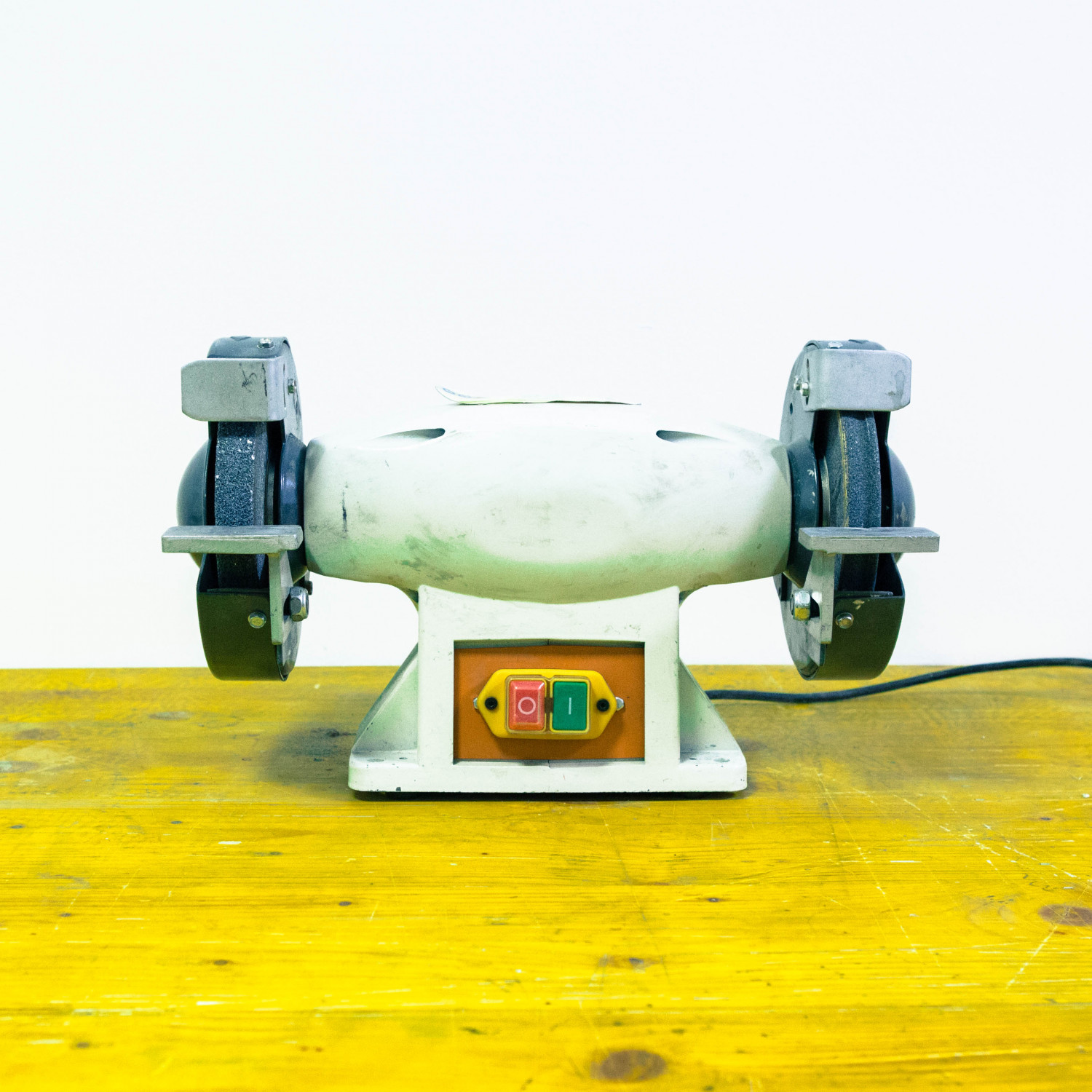

Bench grinder

Angle grinder

Jigsaw

Metal saw

Bolt cutter

Drilling machine

Impact wrench

Angle tool & caliper

Hot air gun

Hot glue gun

Hand files

Clamps

Ratchets & nuts

Hex keys

Torx keys

Screw drivers

Center punch

Pliers

Hammer

Open-end wrenches

A company logo

Plastics processing

The acrylic bending machine and the vacuum former at Happylab offer two further techniques for processing plastics: With the acrylic bending machine, plastic sheets can be precisely bent and chamfered very easily. The vacuum former enables you to mold 3D objects. During vacuum forming, a heated plastic plate is sucked in by the machine's vacuum table so that the plastic adapts to the shape of the 3D model.

Training is required to use the vacuum former:

Next training (vacuum former): 15.12.2020 16:00→ Register
Individual training (vacuum former) → Book appointment

Formech FLB500

  • Acrylic bending machine for the exact bending of plastics
  • Sheet width up to 500 mm
  • Material thickness up to 6 mm
  • Including angle bracket for exact chamfering
  • Price: 0 € / minute (included in membership)

Vaquform DT2

  • Vacuum former for molding 3D objects
  • 280 x 200 mm working area
  • Workpiece height up to 200 mm
  • Material: HIPS, PVC, PMMA, ABS
  • Sheet size: 330 mm x 250 mm
  • Sheet thickness: 0.2 mm - 3 mm
  • Price: 0 € / minute (included in membership)
